INDONESIA'S FIRST
BROADBAND SATELLITE

Satelit Nusantara Satu

Nusantara Satu Satellite (PSN VI) is an Indonesian geo-stationary communications satellite (GEO) owned by Pasifik Satelit Nusantara (PSN). This satellite is placed in a position above the equator at 146 east longitude and moves along with the rotation of the earth.

Nusantara Satu Satellite is Indonesia’s first Broadband Satellite that uses High Throughput Satellite (HTS) technology with a larger bandwidth capacity to provide broadband access services throughout Indonesia.

It has a capacity of 26 C-band transponders and 12 Extended C-band transponders as well as 8 Ku-band spot beams with a total bandwidth capacity of up to 15 Gbps, with coverage areas throughout Indonesia.

Nusantara Satu was created by Space System Loral (SSL), United States and was launched at Cape Canaveral, United States in February 2019 using a Falcon-9 rocket launcher from the Space-X company.

Satellite Specification

The first Indonesian satellite with HTS technology

nusantara satu

SATELLITE NAME:
Nusantara Satu/PSN VI

MANUFACTURER:
SSL, USA

PLATFORM:
SSL-1300

ORBITAL SLOT:
146 BT

LIFESPAN:
>15 years

TRANSPONDERS:
26 C-band
12 Ext C-band
8 Ku-band spot beams

LAUNCH MASS:
4.100 Kg

LAUNCH DATE:
February 2019

LAUNCH PROVIDER:
Space-X, USA

Nusantara Satu Satellite Innovation

The first Indonesian broadband satellite with HTS technology and Electric Propulsion

High Throughput Satellite

hts

High Throughput Satellite (HTS) technology, divides the coverage area into several spot beams, with more efficient use of frequencies (frequency reuse), making the bandwidth capacity much larger than conventional satellites for the same spectrum allocation.

Electric Propulsion

all electric satellite

The electric propulsion technology used on the Nusantara Satu satellite saves the satellite’s weight by hundreds of kilograms at launch. The use of this technology can also save fuel usage, so that fuel can be used to extend the life of the satellite.

Coverage Area

Covering all of Indonesia to the Asia Pacific

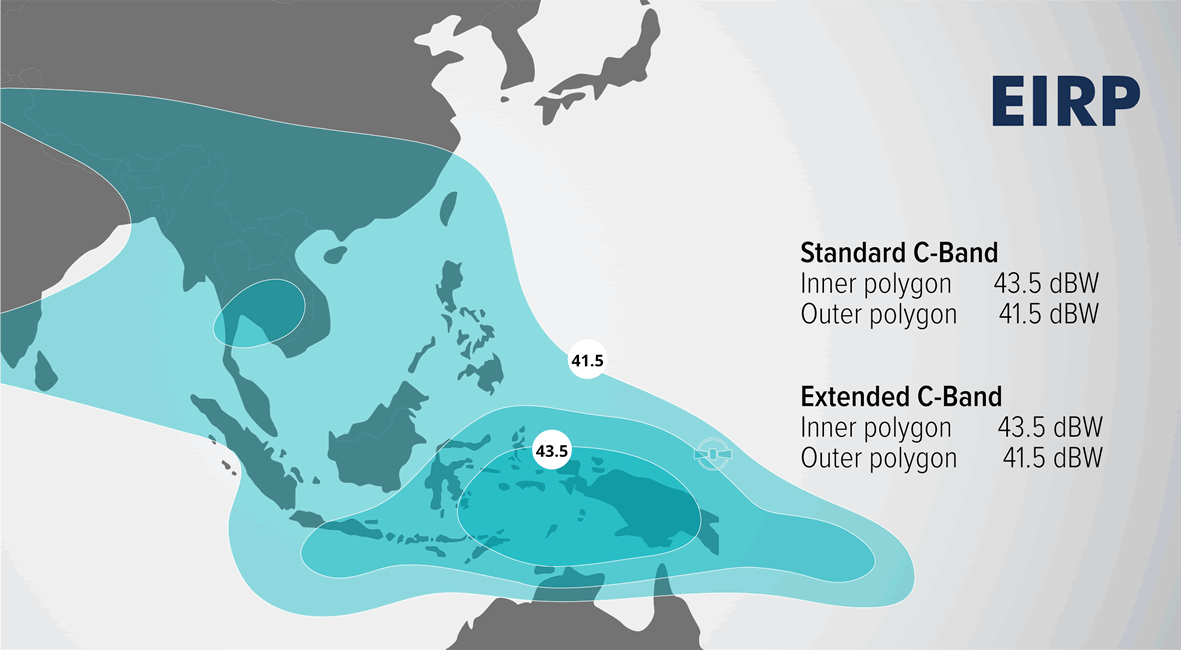

Extended C/C - band

coverage-c-band-n-satu

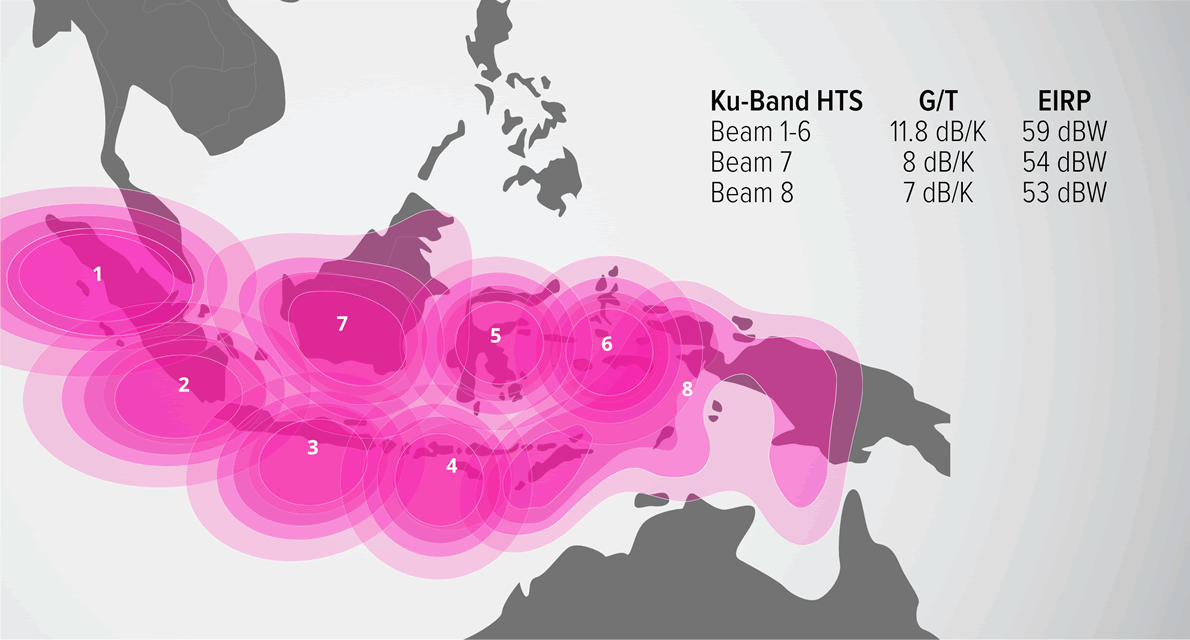

HTS Ku - band

coverage-ku-band-n-satu

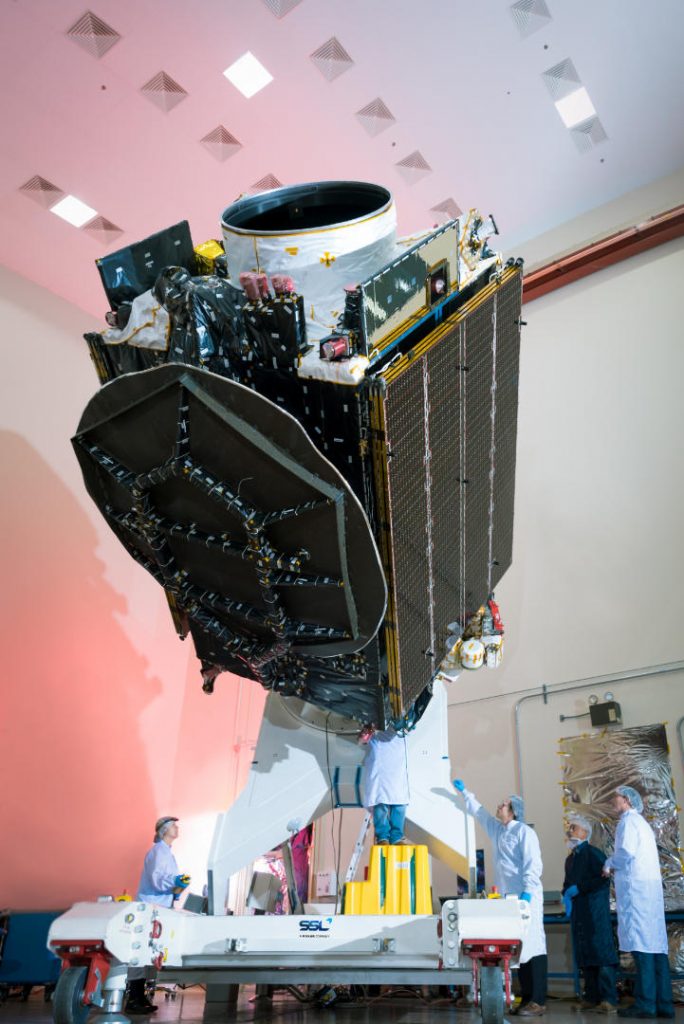

Nusantara Satu Photo Gallery
