TRANSPONDER SATELIT

PSN leases satellite
transponder capacity

PSN is the first private satellite company in Indonesia and one of five national satellite operators that has a satellite orbit slot in the Indonesian sky and owns and operates its own satellites through its earth stations.

PSN provides satellite transponder capacity rental services for its C-band, Extended C-band, Ku-band HTS using the Nusantara Satu satellite which was launched in February 2019.

The Nusantara Satu Satellite is the first Indonesian satellite to use HTS (High Throughput Satellite) technology and consists of 26 C-band transponders, 12 Extended C-band transponders and 8 Ku-band spot beams.

TRANSPONDER TYPE

Ext. C- band

transponder satelit

Alternative C-band for data communication or broadcast needs, resistant to weather changes.

C-band

transponder satelit

For data communication or broadcast needs, stable and resistant to weather changes.

HTS Ku-band

transponder satelit

For high data rate broadband communication needs with a more compact device size.

AREA COVERAGE

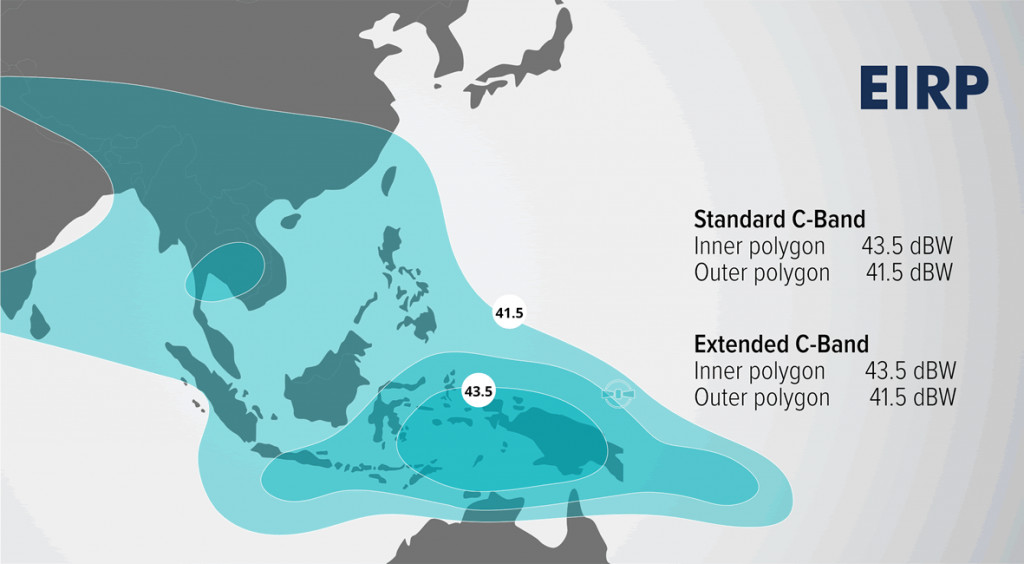

Standard C-band
Inner polygon 43.5 dBW
Outer polygon 41.5 dBW
Extended C-band
Inner polygon 43.5 dBW
Outer polygon 41.5 dBW

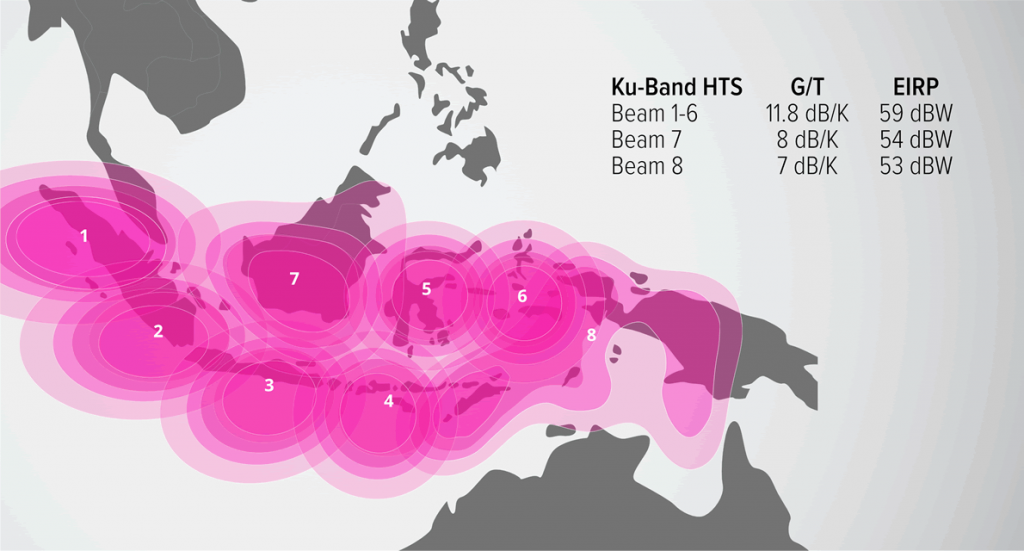

Ku-Band HTS G/T EIRP
Beam 1-6 11.8 dB/K 59 dBW
Beam 7 8 dB/K 54 dBW
Beam 8 7 dB/K 53 dBW

LEASED
TYPE

transponder satelit

Occasional
Transponder Leased

Transponder rental service for a while with a fee based on the length of use and the allocation of bandwidth used.

transponder satelit

Standard Transponder
Lease

Transponder rental service with a fee based on the bandwidth allocation you want to use with a certain contract period

TRANSPONDER LEASED APPLICATION

transponder satelit

TV Broadcaster

For distribution of TV programs to relay stations in the regions, contributions to broadcasts or live broadcasts.

transponder satelit

VSAT Operators

As a communication backbone or resell to its customers.

transponder satelit

Internet Service Provider

For connection to cloud internet or backup network

transponder satelit

Banks

To connect the network with branch offices and ATMs.

transponder satelit

Company

The company's closed user group (CUG) network between the head office and branch offices.

transponder satelit

Government

For information dissemination, data communication or internet access.

Contact us for
your satellite transponder needs.

=
